Andersen Bay and Bow 12 ft Cable Support Kit (1966 to Present)
Status: Stock Item
Product Details
Andersen Perma-Shield Bay and Bow Window 12 ft. Cable Support Kit
-
Works will all Perma-Shield Bay and Bow Windows.
-
This cable support kit has two 12 ' cables that fasten to the bottom of a bay or bow window corners. The cables extend up through the corners and attach to the roof rafters for support. Once the cables are fasten to the the roof rafters you can use an adjustment nut located on the bottom of the corners to level the window. The cables also help prevent the window from sagging. They can be adjusted in the future if the window needs further leveling.
-

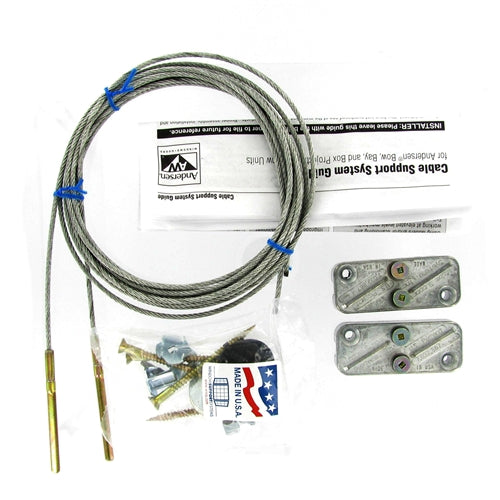

The kit includes:
-
(2) 12 ft. Cables
-
(2) Cable clamp
-
(2) Screw - #12 x 3-1/4 #3 Square Drive, Zinc Plated
-
(2) T-nut - .390 Barrel, Zinc Plated
-
(2) Keyed T-washer - Zinc Plated
-
(2) Flat Washer - 1-1/4, Zinc Plated
-
(2) Lock Washer - Zinc Plated
-
(2) Hex Nut - 1/4-28, .625, Zinc Plated
-
(2) Square Drive Bit - #3
- (2) Nylon Hole Plug
-
