Truth Hardware "Ellipse" Single Arm 9-1/2" Operator (Left Hand)
Status: Stock Item
Product Details
Truth Hardware "Ellipse" Single Arm 9-1/2" Operator (Left Hand)
- Used on casement windows by many manufactures.
- Has a nylon roller on end of operator arm.
- Mounted to sill.
- White color finish.
- High pressure die-cast zinc case and hardened steel arm.
- Protected with Corrosive Resistance E-Gard coating process.
- Left hand operator shown in photo.
- Crank handle sold separately.

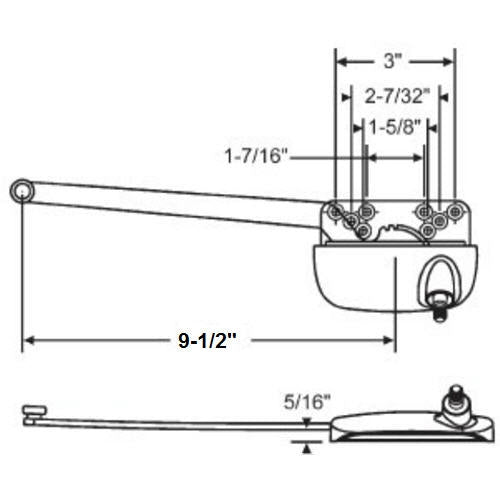

Operator Dimensions
- Hole width on the base is 3"
- Arm length is 9-1/2"

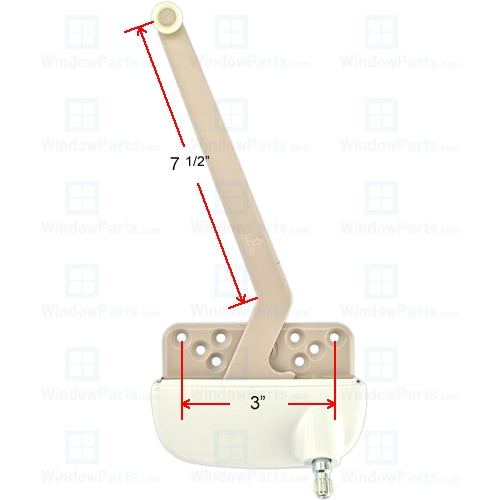

- Arm length from bend (in arm) to rivet is 7-1/2"
