Truth Hardware Front Mount Single Arm 9-1/2" Operator (Left Hand)
Status: Stock
Product Details
Truth Hardware Front Mount Single Arm 9-1/2" Operator (Left Hand)
- Used on casement windows by many manufactures.
- Has a stainless steel roller on end of operator arm.
- White color finish.
- High pressure die-cast zinc case and hardened steel arm.
- Protected with Corrosive Resistance E-Gard coating process.
- Left hand operator shown in photo.
- Crank handle sold separately.

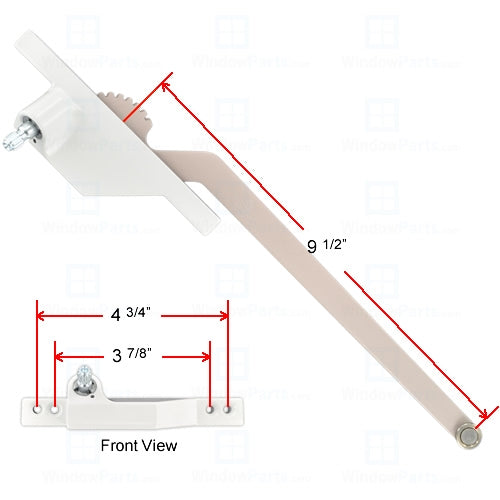

Operator Dimensions
- Hole width on the base is 4-3/4" outer holes and 3-7/8" inner holes
- Arm length is 9-1/2"
